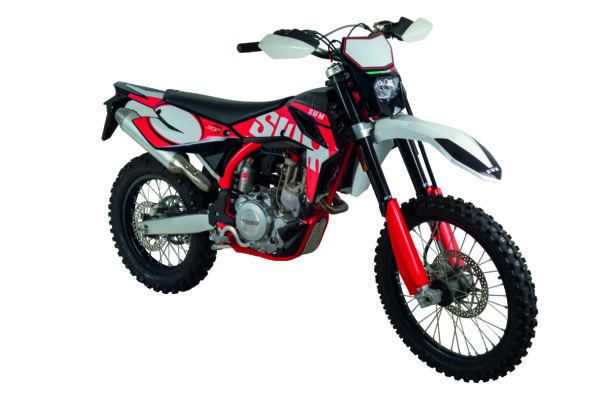

2019 RS 500 R

SWM Motorcycles has the pleasure to announce the new  RS 500 R in its Enduro range. Its eco friendly Euro 4 homologated engine is not only reliable but also powerful! Paired tastefully with a “state of the art” frame, this bike reciprocates confidence and stability back into the rider.


KAYABA SUSPENSIONS

The front suspension consists of a KAYABA telescopic hydraulic fork with upturned stems and an advanced pivot, hydraulic brake adjustment in compression and extension.

FRAME

The single-girder frame, double cradle made of high-strength steel tubes and the rear frame in light alloy give your RS 500 greater precision and stability.

BREMBO BRAKES

The front and rear Brembo brakes ensure excellent power and reliability, for top performance.

ENGINE

The powerful and robust single-cylinder 501cc with double overhead camshaft guarantees high power and torque values.

Rear suspension

The rear suspension consists of a progressive "soft damp" with a KAYABA hydraulic shock absorber. Adjustment of spring preload and hydraulic brake is in compression (double) and extension.


highlights

ENGINE: single cylinder, 4 stroke Cooling liquid with electric fan, 12.9:1 compression

LUBRICATION: Dry sump with two oil pump rotor and cartridge filter

IGNITION: Electronic, inductive discharge, with adjustable advance (digital control)

CLUTCH: Oil bath multiple disc clutch, hydraulic control

TRANSMISSION: Constant mesh gear type

FRAME: Single beam, double cradle in steel tubes; rear frame in light alloy

FRONT SUSPENSION: Upside-down” telescopic hydraulic front fork with advanced axle (adjustable in compression and rebound stroke)

REAR SUSPENSION: Progressive with hydraulic single shock absorber

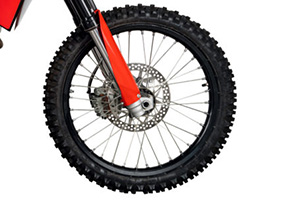

FRONT BRAKE: Fixed disc with hydraulic control and floating caliper

REAR BRAKE: Floating disc with hydraulic control and floating caliper

FRONT RIM: 1,6x21”

REAR RIM: 2,15x18”

WHEELBASE: 58.38 in.

OVERALL LENGTH: 89.25 in.

OVERALL WIDTH: 32.30 in.

OVERALL HEIGHT: 50.59 in.

SADDLE HEIGHT: 37.91 in.

MINIMUM GROUND CLEARANCE: 11.81 in.

DRY WEIGHT: 244.7lbs

FUEL TANK CAPACITY: 1.9 U.S. Gal
