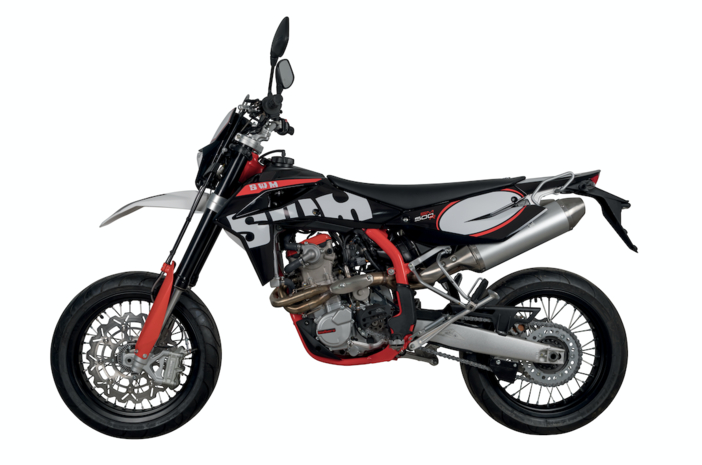

2019 SM 500 R

For 2019 SWM Motorcycles has issued us a heart-stopping, pavement punishing machine - the SM 500 R. Outfitted with a super sticky set of 17” wheels & tires, this bike finds grip and stability you never thought possible. Geared just a bit differently than its off-road counter part, the SM 500 R doubles as a street weapon and track machine.


KAYABA SUSPENSIONS

The front suspension consists of a KAYABA telescopic hydraulic fork with upturned stems and an advanced pivot, hydraulic brake adjustment in compression and extension.

FRAME

The single beam, double cradle made of high-strength steel tubes and the rear frame in light alloy give your SM 500 R the greatest of stability.

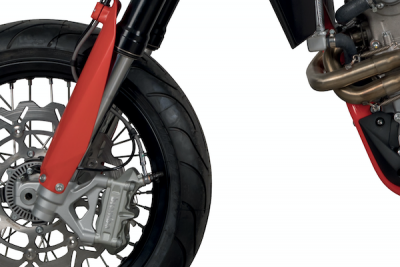

BREMBO BRAKES

The front and rear Brembo brakes ensure excellent power and reliability, for top performance.

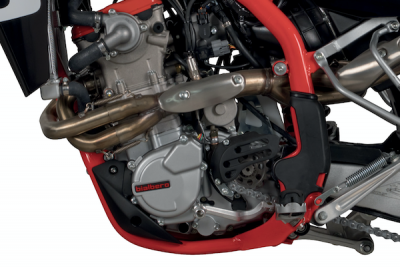

ENGINE

The powerful and robust single-cylinder 501cc with double overhead camshaft guarantees high power and torque values.

Rear suspension

The rear suspension consists of a progressive "soft damp" with a KAYABA hydraulic shock absorber. Adjustment of spring preload and hydraulic brake is in compression (double) and extension.


highlights

ENGINE: Single cylinder, 4 stroke 12.9:1 Compression ratio

LUBRICATION: Dry sump with two oil pump rotor and cartridge filter

IGNITION: Electronic, inductive discharge, with adjustable advance (digital control)

FUEL SYSTEM: Electronic injection feed

CLUTCH: Oil bath multiple disc clutch, hydraulic control

TRANSMISSION: Constant mesh gear type

FRAME: Single beam, double cradle in steel tubes; rear frame in light alloy.

FRONT SUSPENSION: Upside-down telescopic hydraulic front fork with advanced axle (adjustable in compression and rebound stroke)

REAR SUSPENSION: Progressive with hydraulic single shock absorber

FRONT BRAKE: Floating disc, “Wave” type with hydraulic control and fixed radial caliper

REAR BRAKE: Fixed disc with hydraulic control and floating caliper

FRONT WHEEL: 3.50x17”

REAR WHEEL: 4.25x17”

FRONT TIRE SIZE: 120/70-17”

REAR TIRE SIZE: 150/60x17”

WHEELBASE: 57.68 in.

OVERALL LENGTH: 83.15 in.

OVERALL WIDTH: 32.30 in.

OVERALL HEIGHT: 48.03 in.

SADDLE HEIGHT: 37.01 in.

MINIMUM GROUND CLEARANCE: 1.73 in.

DRY WEIGHT: 293.21lbs

FUEL CAPACITY: 1.9 U.S. Gal
